Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모터 유형 | 기어박스 PM 모터 | 발걸음 각도 | 5.625' /64 |
|---|---|---|---|
| 정격 전압 | 12V DC | 기어 비율 | 64:1 |
| 운전 모드 | 단극입니다 | 단계 번호 | 4개 단계 |
| 강조하다 | 28BYJ48 stepper motor with gearbox,Permanent magnet stepper motor 64:1 ratio,Low price PM stepper motor |
||
제품 설명
Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
Description:
28BYJ48 motor is massively produced product.
This motor is mostly used on a series of household appliances such as smart toilet, air conditioning and so on.
Due to big quantity, the price of this product can be lower compared to other products.
The is a gearbox inside the gearbox, and in general gears are POM(plastic), we can also replace them with metal gears, and it would increase its cost by doing so.
Parameters:
| Motor type | PM stepper motor+gearbox |
| Model No. | 28BYJ48 |
| Rated Voltage | 12V DC |
| Coil resistance | 100Ω/phase |
| Step angle | 5.625°/64 |
| Gear ratio | 64:1 |
| Pull-in torque | ≥49 mNm |
| Cable number | 5 cables (unipolar) |
Design drawing:

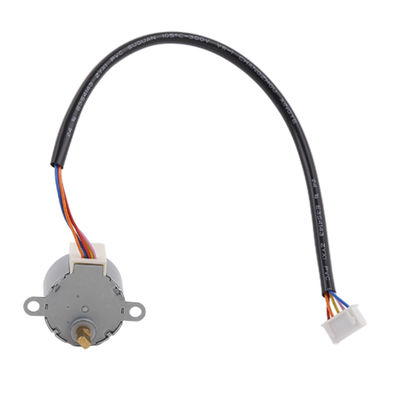

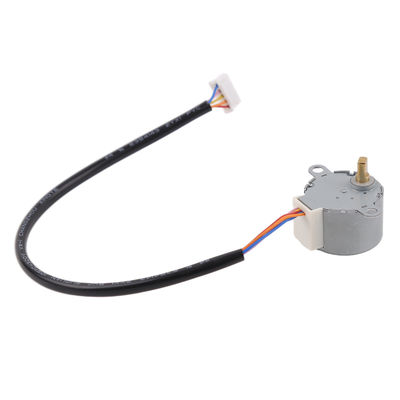

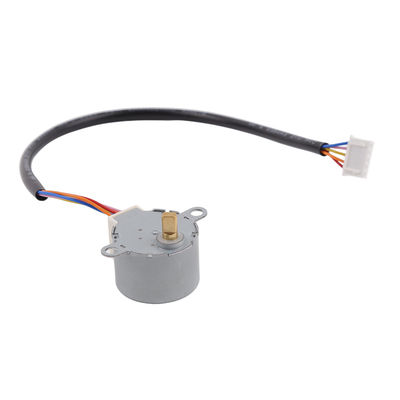

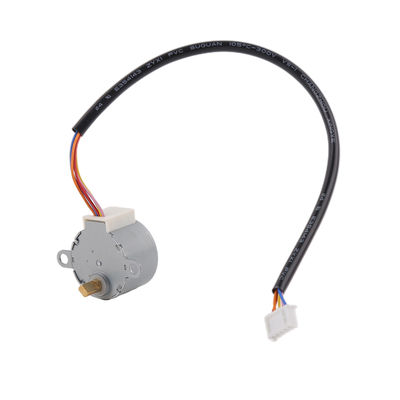

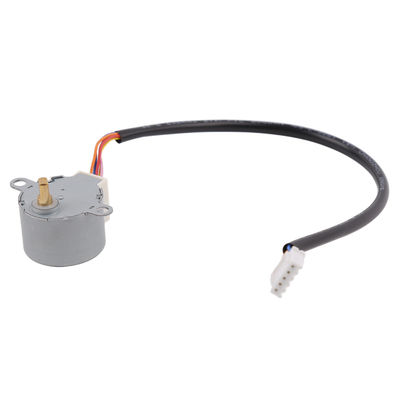

Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motor with gearbox:
Gearbox can boost motor’s torque, and reduce motor’s speed
We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.
Output torque=original torque*gear ratio* gearbox efficiency
Output speed= original speed/gear ratio
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
