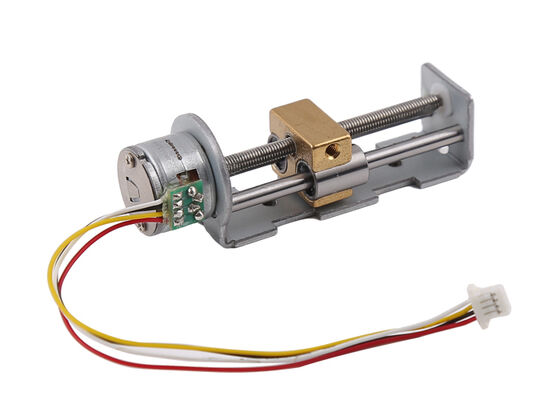

15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
| Place of Origin | China |
|---|---|
| 브랜드 이름 | Vic-Tech motor |
| 인증 | RoHS |
| Model Number | SM15-45L-T |
| Minimum Order Quantity | 1 pc |
| 가격 | US$4.5~18.5 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection |
| Delivery Time | 3~15 days |
| Payment Terms | T/T, D/P |
| Supply Ability | 100000/month |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Motor Size | 15mm （optional 6 8 10 20 25） | Step Angle | 18 Degree |
|---|---|---|---|
| Motor Type | Stepper Motor With Lead Screw | Movement Type | Linear （forward And Backward ） |
| Lead Pitch | M3 Pitch 0.5mm | Driving Voltage | 6 VDC |
| Coil Resistance | 15 Ohm （can Customization） | Driving Method | Bi-polar 2-2 Phase |
| 강조하다 | 15mm electric stepper motor,5VDC linear stepper motor,M3 lead screw stepper motor |
||
제품 설명
15mm M3 lead screw slider stepper motor features:
SM15-45L is a precision miniature stepping motor equipped with a bracket, a lead screw and a relative motion slider. The output shaft has a lead screw with a pitch of 0.5mm, and the lead screw and the lead screw supported by the lead screw rotate into thrust.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
In terms of actuators, the subdivision drive method is used to satisfy.
The input part of the motor is FPC, but it can be changed to the form of connecting wire, PCB, etc. according to customer needs.
Mounting brackets can be replaced according to customer requirements.
Due to its small size, high precision, and easy control, this miniature stepping motor is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
Main Application
1) vending machine
2) Optical instruments
3) Precision medical devices
4) beauty equipment
Other precise control application
15mm M3 lead screw slider stepper motor Specifications:
| Model No. | SM15-45L-T |
| Motor type | Linear stepper motor |
| Phase No. | 2 Phases |
| Step angle | 18 Degrees |
| Phase resistance | 15Ω±10%/phase |
| Excitation method | 2-2 bipolar drive |
| Rated voltage | 5 - 12 V DC |
| Lead screw type | M3*0.5Pitch thread |
| Stroke | 45 mm |
| Pull-out thrust | Over 200 gf at 500 PPS |
| Max response frequency | Over 1100 PPS |
Drawing of 15mm plastic slider stepper motor with 45mm stroke:

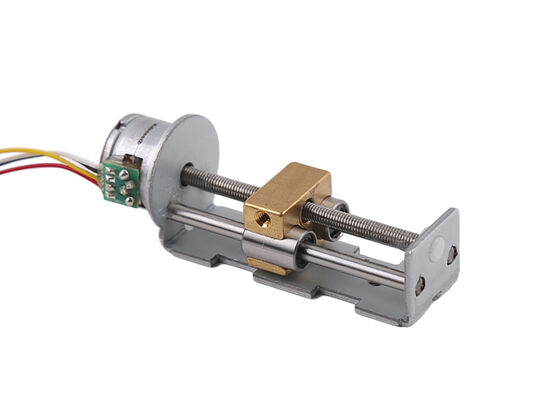

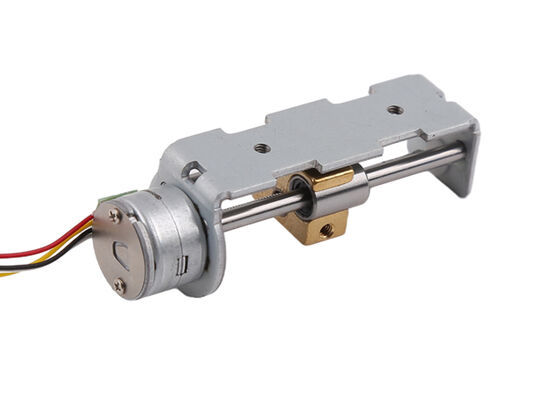

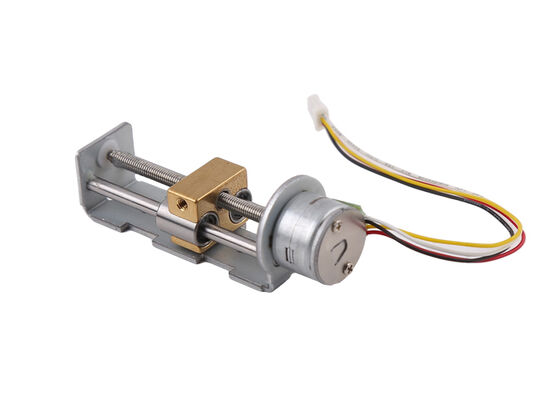

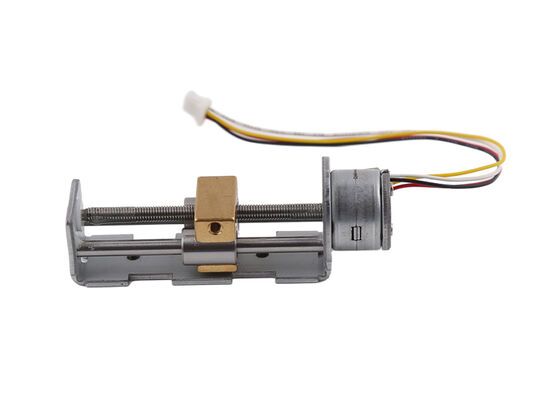

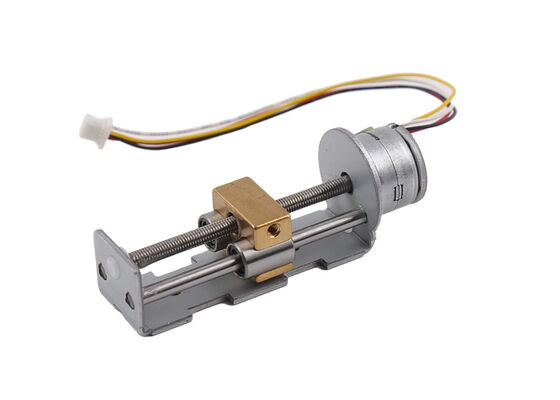

Product display for 15mm plastic slider stepper motor:
Customers can customize content:
1. In terms of the outer diameter of the motor, different sizes such as 6mm 8mm 10mm 15mm 20mm 25mm can be selected according to the customer's use environment and space strength.
2. The outlet position of this motor can be freely selected within a range of 360 degrees to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, FPC bare pin.
3. The stroke can be customized according to customer requirements, and the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the lead screw.
Usually the maximum length of M2 screw is 50mm, M3 screw is 100mm, M4 screw is 100mm. We can also do 150mm. Small motors use a lead screw with an excessively large diameter, which consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.
4. The material of the slider is generally plastic, which is easy to form and economical.
When there are special use environments and requirements, the slider can also use metal parts.
Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
