10mm 5V Stepper Motor with M3P1.2mm Screw and Copper Nut
| Place of Origin | Jiangsu, China |
|---|---|
| 브랜드 이름 | Vic-tech |
| 인증 | RoHS |
| Model Number | SM10-56.5L |
| Minimum Order Quantity | 5 |
| 가격 | $1.99-5 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Phase | 2, 2 | Type | Permanent Magnet |
|---|---|---|---|
| Current | 270 mA | Rated Voltage | 5V DC |
| Coil Resistance | 18Ω±10% | Step Angle | 18 |
| Size | DIA10*L12mm | Lead Screw | M3P1.2 |
| Screw Length | 56.5mm | Max Starting Frequency | 1500 PPS min. (AT 5.0 V DC) |
| Max Slewing Frequency | 1000 PPS min. (AT 5.0 V DC) | Pull In Torque | 5.0 gf-cm min. (AT 500 PPS , 5.0 V DC) |
| Pull Out Torque | 6.0 gf-cm min. (AT 500 PPS , 5.0 V DC) | Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50 MΩ (DC 500 V) | ||
| 강조하다 | 10mm stepper motor 5V,micro stepper motor M3P1.2mm,5V stepper motor copper nut |
||
제품 설명
10mm Micro Motor Stepper Motor with Copper Nut Screw Stepper Motor
Product Specifications
| Warranty | 3months-1year |
| Phase | 2, 2 |
| Type | Permanent Magnet |
| Current / Phase | 270 mA |
| Rated Voltage | 5V DC |
| Coil Resistance | 18Ω±10% |
| Step angle | 18° |
| Size | DIA10*L12mm |
| Lead screw | M3P1.2 |
| Screw length | 56.5mm |
This 10BY micro 5V stepper motor features a 10mm diameter with 14mm mounting hole spacing. It's a 2-phase bipolar stepper motor with standard M3P1.2mm screw pitch and includes copper nuts. Custom nut configurations are available to meet specific customer requirements.
Technical Specifications
| Model | SM10-56 |
| Max. Starting Frequency | 1500 PPS min. (AT 5.0 V DC) |
| Max. Slewing Frequency | 1000 PPS min. (AT 5.0 V DC) |
| Pull In Torque | 5.0 gf-cm min. (AT 500 PPS, 5.0 V DC) |
| Pull Out Torque | 6.0 gf-cm min. (AT 500 PPS, 5.0 V DC) |
| Insulation Class | CLASS E for coils |
| Insulation Strength | 100 V AC for one second |
| Insulation Resistance | 50 MΩ (DC 500 V) |
| Operating Temperature Range | -0~+55℃ |
| Customization | OEM & ODM service available |

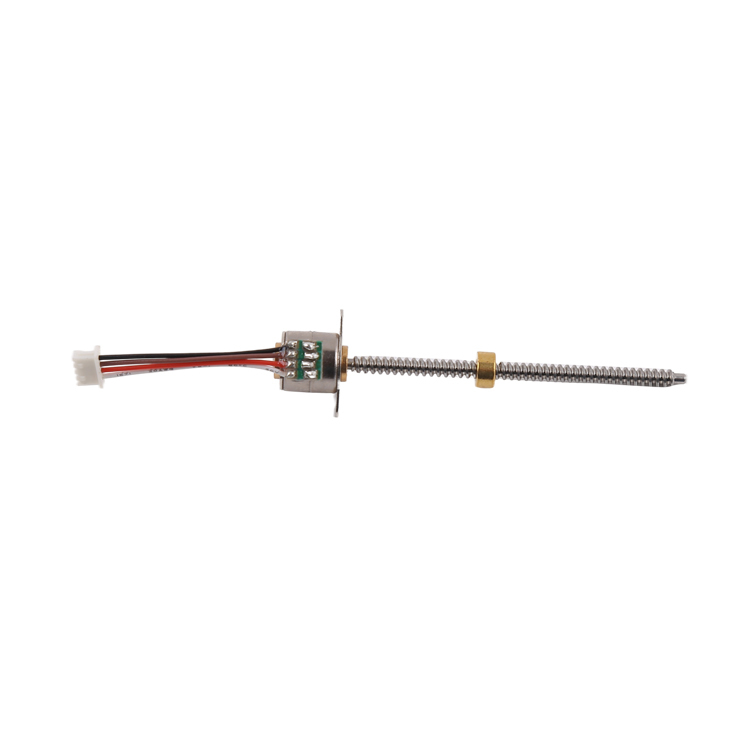

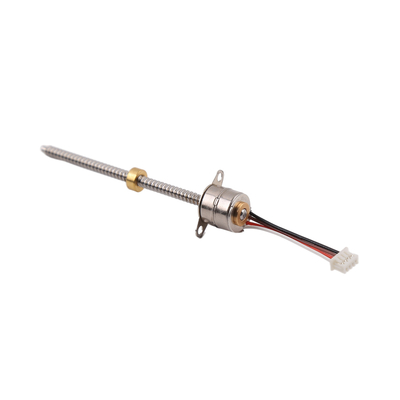

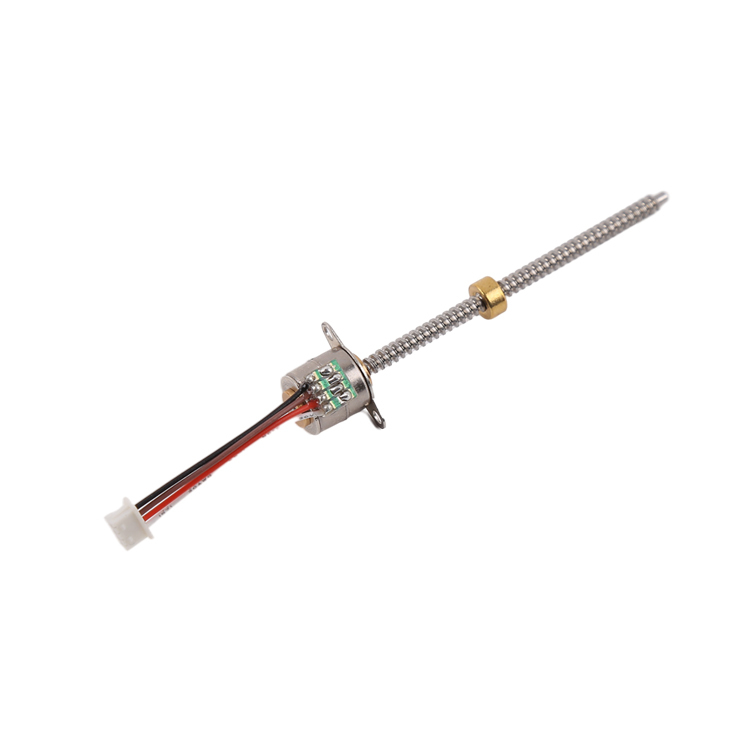

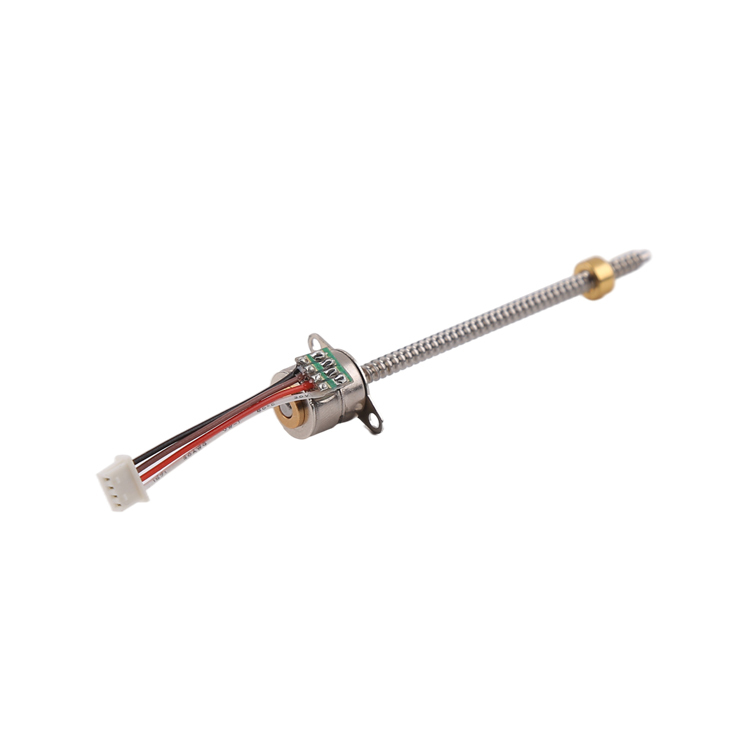

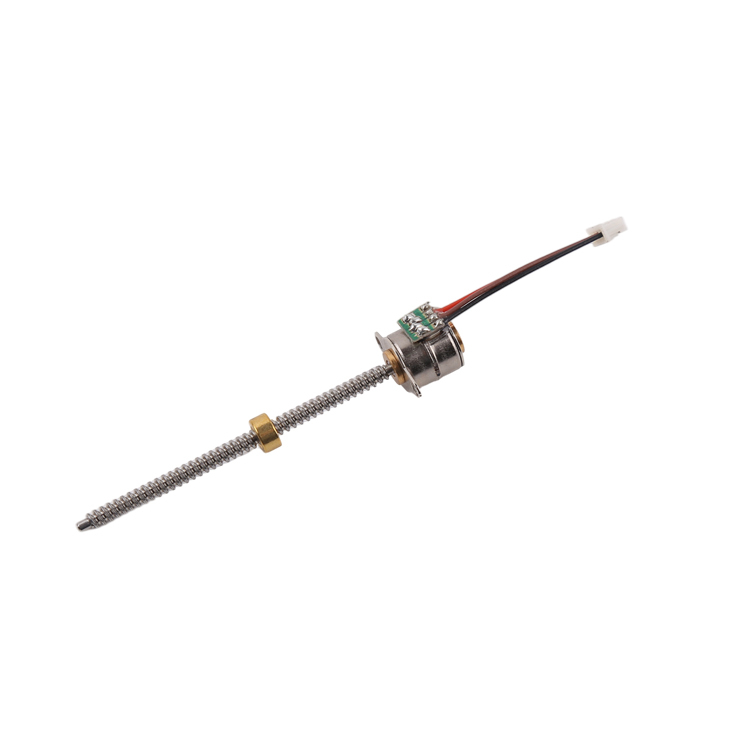

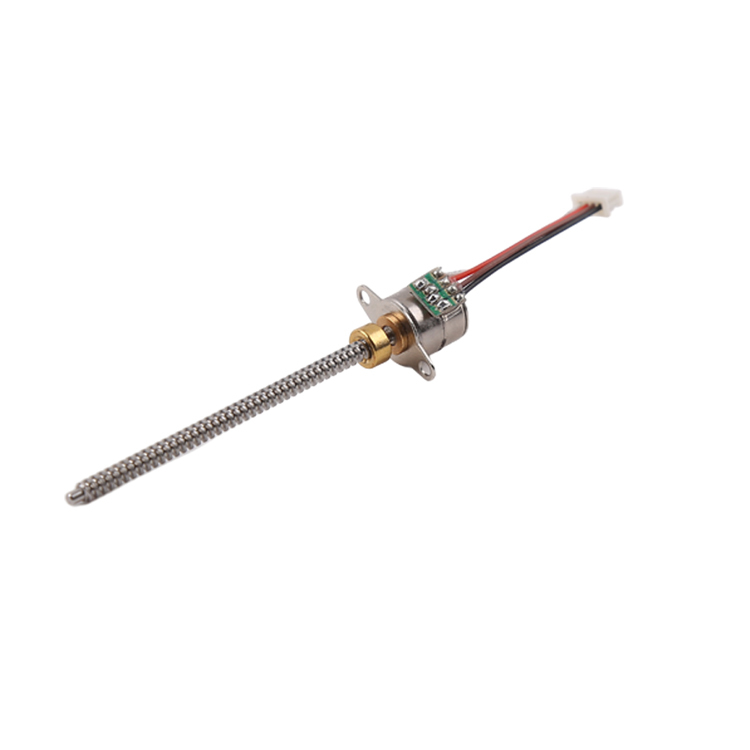

Product Images
Wire Connection Options
Motor input methods include Pin type, FPC, PCB, and lead wire configurations. These can be customized according to customer requirements.
About Changzhou Vic-Tech Motor Technology Ltd.
We are a professional manufacturer and scientific research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from convenient logistics and transportation infrastructure.
Our company features:
- Experienced R&D team with decades of motor development expertise
- Custom design capabilities for mechanical structures, drive controls, and motor parameters
- Four manufacturing facilities in Shenzhen, Changzhou, and Dongguan
- ISO9001:2008 certified production of stepper motors, permanent-magnet motors, micro motors, and DC motors
- Capacity to handle large volume orders
Frequently Asked Questions
1. How about the quality of your products?
We maintain high quality standards with positive feedback from global clients. Our product complaint rate remains below 1%. For any issues during the warranty period, we provide immediate assistance.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in producing and exporting various motor products and welcome your inquiries.
