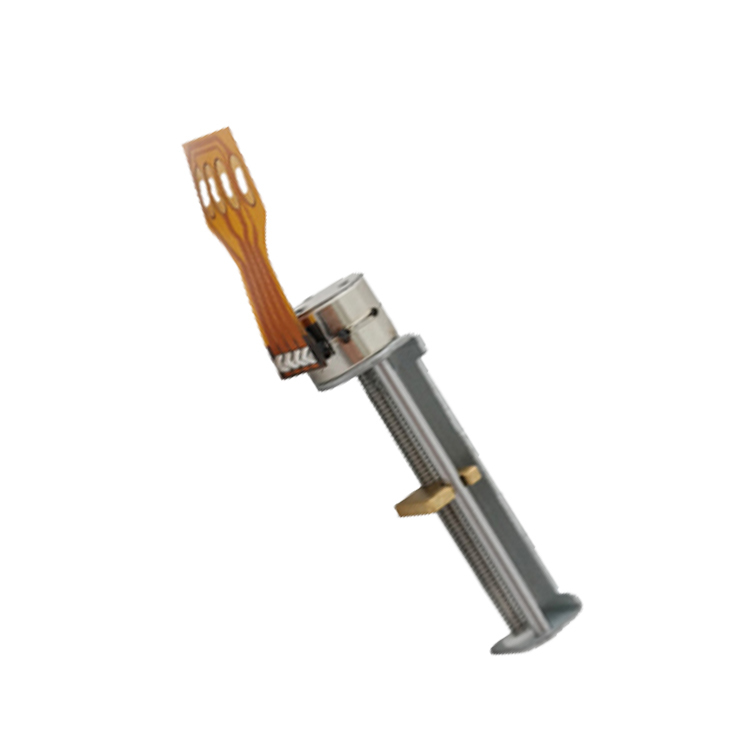

VSM0807C 8mm Mini Linear Stepper Motor 2 Phase 5V for Camera
| Place of Origin | Jiangsu, China |
|---|---|
| 브랜드 이름 | Vic-tech |
| 인증 | RoHS |
| Model Number | VSM0807C |
| Minimum Order Quantity | 3 |
| 가격 | $1.98-7 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Phase | 2 | Current per Phase | 150mA |
|---|---|---|---|
| Rated Voltage | 5.0V | Coil Resistance | 16Ω±10% |
| Step Angle | 18° | Size | DIA8*L40mm |
| Max Starting Frequency | 800 PPS min. | Max Slewing Frequency | 2000 PPS min. |
| Pull In Torque | 2.8 gf-cm min. | Pull Out Torque | 3.8 gf-cm min. |
| Insulation Class | CLASS E | Insulation Strength | 100 V AC |
| Insulation Resistance | 1.0 MΩ | Operating Temperature | -10 ~ +60 ℃ |
| Screw Pitch | 0.4mm | ||
| 강조하다 | 8mm mini linear stepper motor,2 phase 5V stepper motor,camera micro stepper motor |
||
제품 설명
VSM0807C 8mm Mini Slider Screw Stepper Motor
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 3months-1year |
| Phase | 2, 2 |
| Type | Permanent Magnet |
| Current / Phase | 150mA |
| Rated Voltage | 5.0V |
| Coil Resistance | 16Ω±10% |
| Step angle | 18° |
| Size | DIA8*L40mm |
The VSM0807C is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust for precise positioning applications.
With a basic step angle of 18°, the motor completes 20 steps per revolution, achieving a displacement resolution of 0.02mm for exceptional control accuracy. The actuator utilizes subdivision drive technology for smooth operation.
This compact, high-precision stepper motor is ideal for camera mechanisms, optical instruments, lenses, precision medical devices, and automatic door locks. Customization options include FPC, pin connectors, PCB, or lead wire input methods, with mounting brackets tailored to specific requirements.
Technical Specifications
| PRODUCT NAME | 8MM MICRO LINEAR STEPPER MOTOR |
| MODEL | VSM0807C |
| RATED VOLTAGE | 5 V |
| COIL RESISTANCE | 16 Ω±10% |
| PHASE | 2 PHASE |
| MAX. STARTING FREQUENCY | 800 PPS min. (AT 5.0 V DC) |
| MAX. SLEWING FREQUENCY | 2000 PPS min. (AT 5.0 V DC) |
| PULL IN TORQUE | 2.8 gf-cm min. (AT 480 PPS , 5.0V DC) |
| PULL OUT TORQUE | 3.8 gf-cm min. (AT 480 PPS , 5.0V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 1.0 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10 ~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |

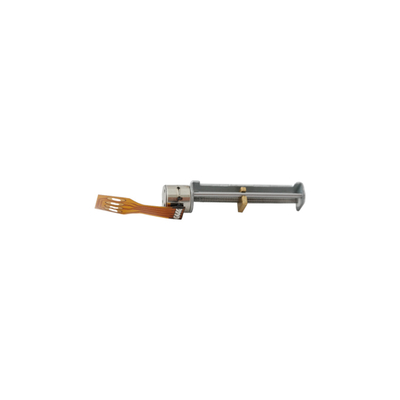

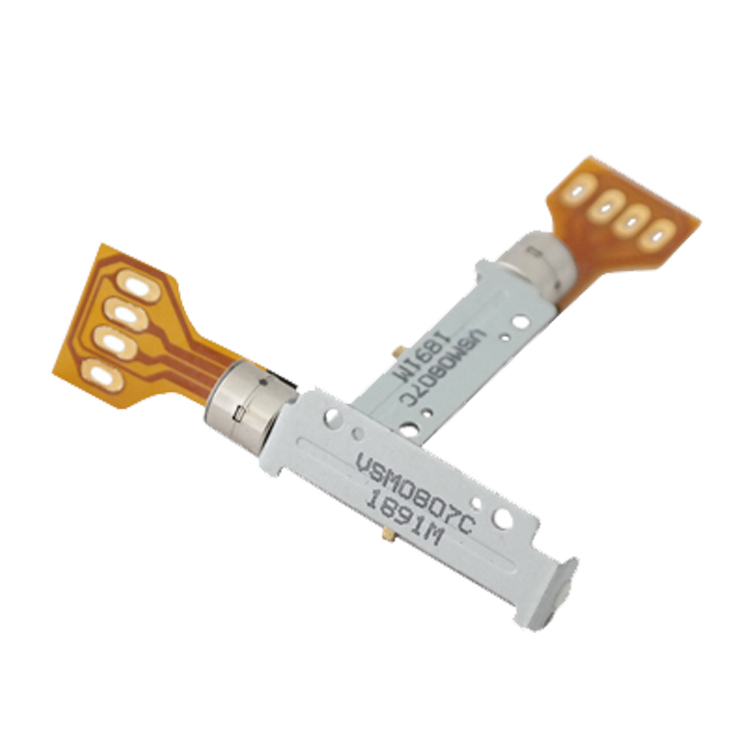

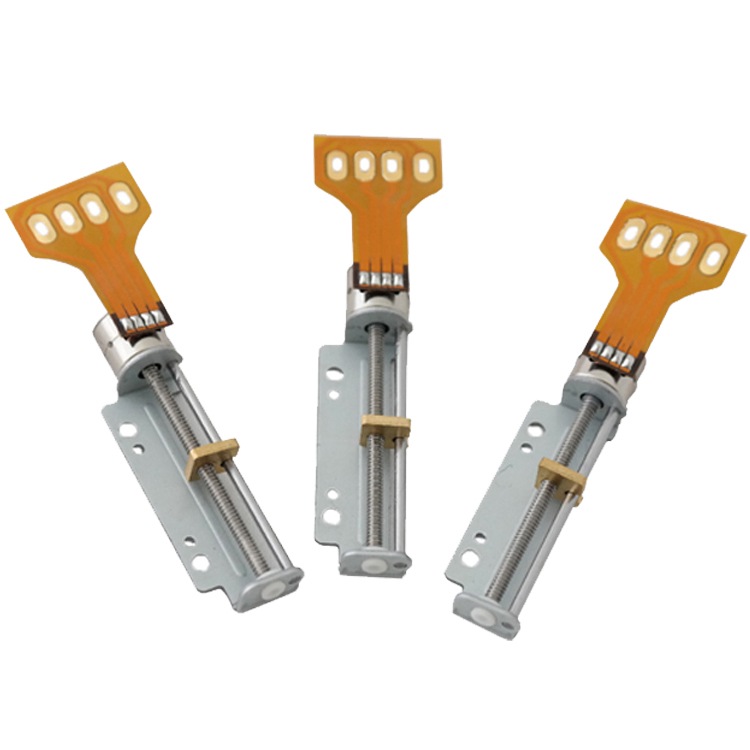

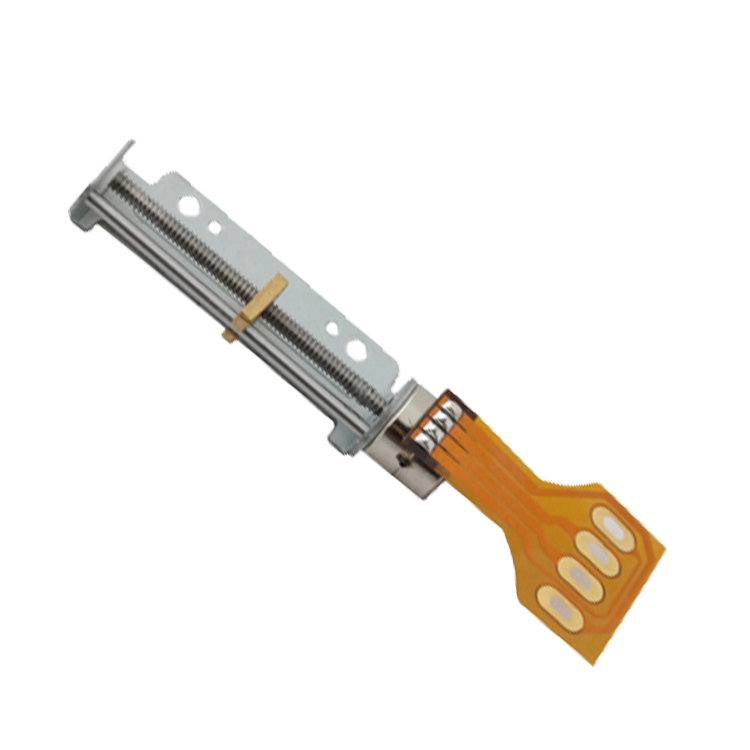

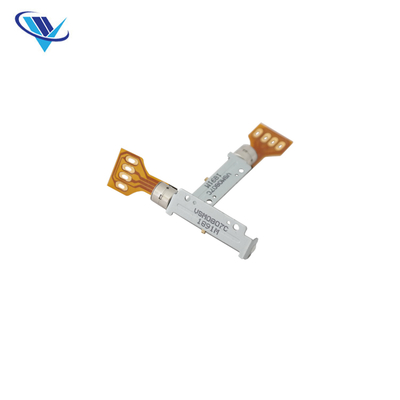

Product Images
Technical Drawing
Wire Connection Options
Motor input methods include Pin type, FPC, PCB, and Lead wire configurations. These can be customized to meet specific customer requirements.
About Changzhou Vic-Tech Motor Technology Ltd.
We are a professional manufacturer and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), our facilities benefit from excellent transportation links and proximity to major cities.
With decades of motor research experience, our team of professional engineers develops customized solutions including mechanical structures, drive controls, and motor parameters. Our four manufacturing facilities in Shenzhen, Changzhou, and Dongguan produce stepper motors, permanent-magnet motors, micro motors, and DC motors, all ISO9001:2008 certified.
Frequently Asked Questions
1. How about the quality of your products?
Our products maintain high quality standards with positive global feedback. We provide immediate support for any issues during the warranty period, maintaining a complaint rate below 1%.
2. Are you a manufacturer?
Yes, we are a direct manufacturer with our own factory in Changzhou, China. We specialize in producing and exporting various motor types, including the VSM0807C stepper motor.
