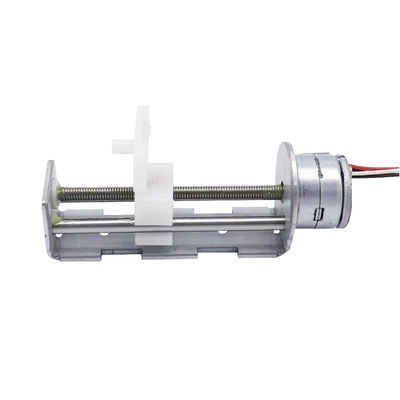

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution

  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
원래 장소 중국 장수
브랜드 이름 VIC-TECH
인증 RoHS
모델 번호 SM15-45L
최소 주문 수량 2
가격 $6.31-15

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

SKYPE: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
모터 직경 15mm 정격 전압 6V DC
코일 저항 15±10%Ω/PHASE(20℃) 단계 당 경향 400 ma/phase (1000pps)
No.of 단계 2개 단계 계단 각도 18' /step
여기 방법 2-2 상을 드라이브합니다 드라이브 모드 양극적 동력
풀아웃 추력 500 pps에서 200g 이상 최대 응답 빈도 1200 pp 이상
최대 응시 주파수 900pps 이상 단열 수업 코일용 클래스 E
절연 강도 100V AC 1초 동안 절연 저항 50mΩ DC 500V
작동 온도 범위 -0 ~+55+
강조하다

385mA Micro Stepper Motor

,

0.02mm Resolution Permanent Magnet Stepper Motor

,

6V DC 2 Phase Stepper Motor
메시지를 남겨주세요
제품 설명
15mm Screw Slider Stepper Motor 2 Phase PM Micro Stepper Motor
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 0 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 1
The SM15-45L is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. The screw rotation generates thrust, with a basic step angle of 18 degrees (20 steps per revolution) achieving a displacement resolution of 0.02mm for precise control. The actuator uses subdivision drive mode to meet application requirements.
Our team brings over 10 years of stepper motor design, development, and production experience, offering custom product development and auxiliary design services tailored to your specific needs.

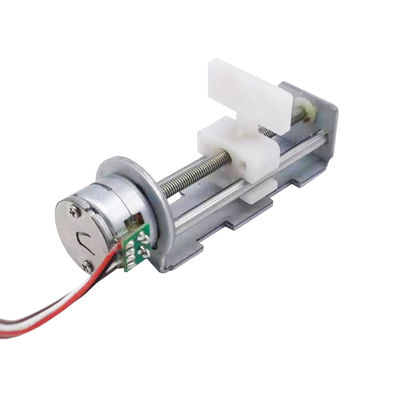

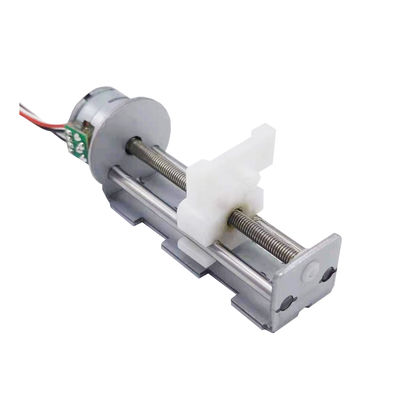

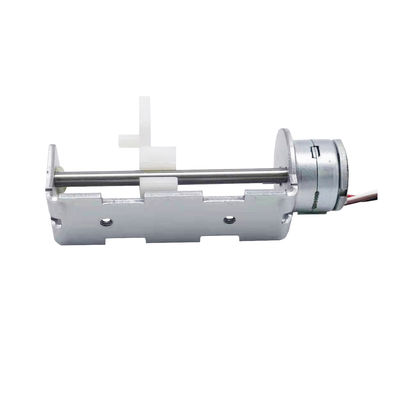

Product Images
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 2 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 3
Design Layout (Unit: mm)
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 4 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 5
Specifications
Model No. SM20-45L-S
Motor diameter 15mm
Rated Voltage 6V DC
Coil Resistance 15±10% ohm/PHASE(20℃)
Current Per Phase 400 mA/Phase(1000pps)
No.Of Phases 2 Phases
Step Angle 18°/Step
Excitation Method 2-2Phases Drive
Drive Mode Bipolar Drive
Pull-out Thrust More Than 200 g At 500 pps
Max Response Frequency More Than 1200 PPS
Max Staring Frequency More Than 900 PPS
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistance 50MΩ DC 500V
Operating Temperature Range -0~+55℃
Packing & Delivery
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 6 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 7
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 8 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 9 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 10
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, reliability, and quality, Vic-Tech Motor continues to pioneer international sales by establishing global partnerships.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
2. How can we guarantee quality?
We conduct pre-production samples before mass production and final inspections before shipment.
3. What can you buy from us?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering micro stepper motors, geared motors, underwater thrusters, and controllers with custom design services.
5. What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
